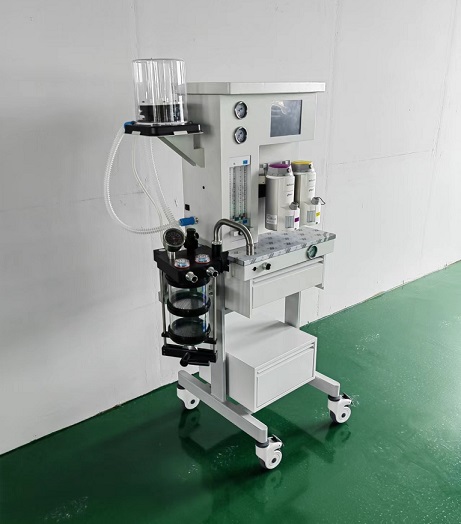

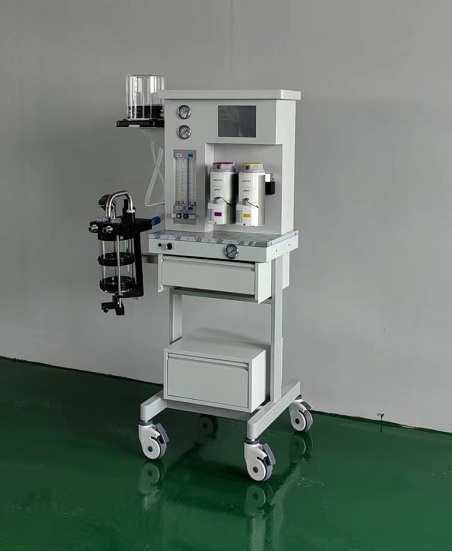

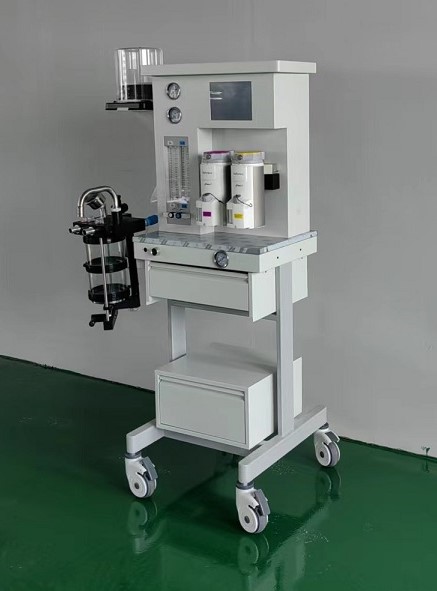

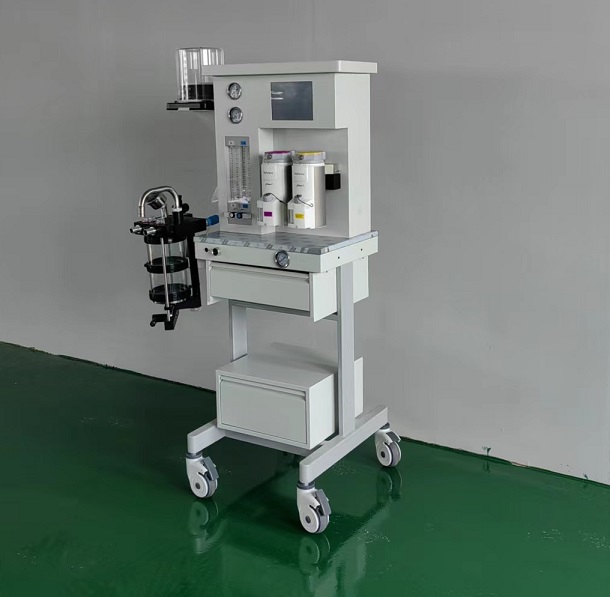

Anaesthesia Machine-double big vaporizers

Product description

Model S Anaesthesia Machine contains output interface for anesthesia information management system. Complete with backup battery for working more than 120 minutes.

Product Parameter

Dual-end pressure flow sensor,The unit can monitoring tidal volume,respiratory frequency,airway pressure,pressure-time wave,flow-time wave(two-way),high pressure limitation,low pressure limitation,apnea,oxygen concentration under both two operating mode(Auto,Manual)

Respiration loop function

Close,semi-close,semi-open and open(with bain circuit)

Low gas alarming:it gives alarming more than 7 seconds

O2 flush:25~75L/min

Gas Pressure:O2:0.3~0.5MPa;N2O:0.3~0.5MPa;AIR 0.3~0.5MPa

Power:220V±10%, 50Hz±1%;Backup UPS battery

Flow meter

O2,N2O,AIR- six tubes (0.05~1L/min,1~10L/min)

O2/N2O inter-lock system, to keep O2 concentration no less than 25%

Respiratory Circuit

Consolidated compact CO2 absorber(autoclavable) with own patent.

ZF-3000 vaporizer

Adjustable range:0.5~5% VOL

Automatic compensation function-flow,pressure,temperature

Self-lock&inter-lock function

Volume:>280ml (Optional: electronic anaesthesia vaporizer)

Application

1. Anesthetic function: Anesthesia machine is used to bring anesthetic drugs to the patient through the circuit

2. Ventilator function: The patient's respiratory function should be maintained during general anesthesia.

3. Monitoring function: First, the monitor can monitor the patient's vital information, such as heart rate, blood pressure and pulse. Second, it can detect the breathing condition, that is, how much anesthetic gas components, carbon dioxide components in the breathing gas. Third, the depth of anesthesia is monitored.

Service

HUIFA provides a free trainning course for all produced machine in Tianjin & Beijing office, meanwhile HUIFA will do her best to offer Installation Manual,

Operation Manual, Service Manual by documents or CD to better satisfy customer.

HUIFA provides 2 years guarantee service for all produced machines. Meanwhile, according to the warranty card enclosed in the packing box, the corresponding free warranty period is provided for the main unit from the date of Ex-factory.

FAQ

Q1. What is the advantage about your company?

A1.The company has been engaged in export business for more than 15 years, with a professional team and professional production line.

Q2. What about quality assurance?

A2.We provide two-year warranty for medical equipment from the date of delivery.

Q3.The logo and the color can be customized?

A3.Yes, we welcome you to sample custom.

Q4. What about the delivery time?

A4.We have some material in stock, which can make sure to delivery the goods out quickly for small quantity orders. For customized orders, the delivery time is usually within 15 working days after receiving the payment.

Q5.What is payment terms?

A5.T/T, Credit Card, L/C, PayPal.

Q6: Can you sell spare parts ?

A6: Yes, Of course .we can sell spare parts to you.
