Anesthesia Machine Moddel 40

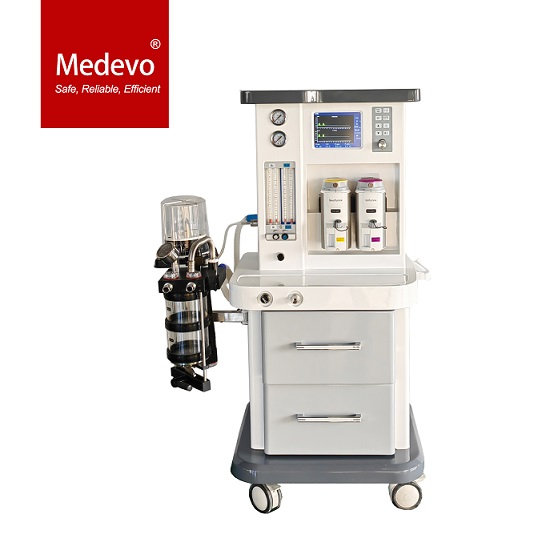

Anesthesia Machine Model40

High resolution 8”color TFT LCD screen

Dual-end pressure flow sensor,The unit can monitoring Tidal volume,Respiratory frequency, Airway pressure, Pressure-time wave,High pressure limitation, Low pressure limitation, Apnea,Oxygen concentration under both two operating mode (Auto、Manual)

Respiration loop function

Close, semi-close, semi-open system

Application: Adult, Pediatric

Low gas alarming: Low O2 gas pressure, it will gives alarming more than 7 seconds.

High pressure limitation: Whenever airway pressure exceed the pre-set high pressure,ventilator offers protection automatically, to assure airway pressure can not increase anymore which supplies safety to patient.

Low pressure protection: Once O2 pressure less than 0.1MPa, N2O gas supply wasstopped automatically.

Power failure alarming, power extendable function

O2 flush: 25~75L/min

Gas pressure: O2:0.3~0.5 MPa  N2O: 0.3~0.5MPa

Power: 220V±10%，50Hz±1%; backup USP battery

Optional touch screen anaesthesia ventilator
