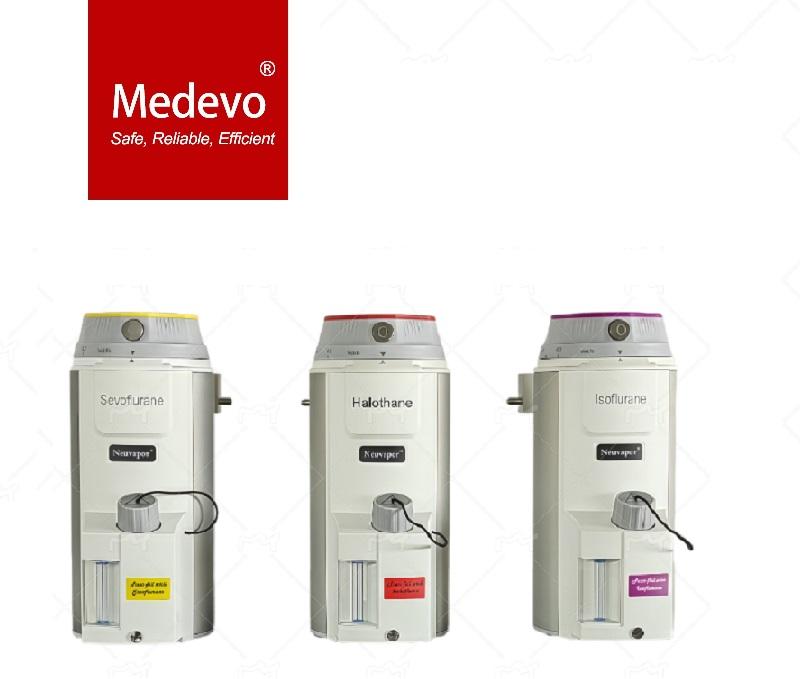

Anaesthesia Evaporator

Product advantage

Anesthesia evaporator has been optimized and designed, the output response time is extremely short, and the stable output of the required anesthesia concentration can be achieved soon after it is turned on; the perfect flow compensation function can be achieved even in a small flow statestable output of anesthetic concentration; Perfect temperature compensation function, in15 ° C- 35 °Ctemperature range. The maximum injection volume is up300ml, even large-capacity bottled narcotic agentscan be injected at one time to avoid unnecessary waste.

Anesthesia evaporator can provide Easy-fil, Key-filandQuik-fil(OnlySEV) and other injection methods,can realize airtight addition of medicine, so that the liquid medicine will not leak out and the operating room environment will be protected.

Anesthesia evaporator can choose to use Enflurane, Isoflurane, Halothane, Sevoflurane and other anesthetic agents; and can match a variety of standard interfaces, suchSelectatec compatible,Draeger Plug-inandCagemount(ISO23mm tapers), etc. to meet your different needs.ibis200anesthesia evaporator can providePour-fil, Easy-fil, Key-fil, Quik-filand other dosing methods.

Contact Now E-Mail Telephone

Product Details

Product description

The anesthesia evaporator combines the characteristics of ergonomics, accuracy, safety, and reliability. Precision design will provide reliable and safe solutions for the filling and installation types of anesthesia machines.

Adopting the latest innovative design of the conveying system, the vaporizer can deliver accurate concentrations under different flow rates, pressures, temperatures, and other conditions.

The carburetor is calibrated by skilled technicians. Advanced temperature compensation system ensures stable concentration delivery.

Its design is precise, and production strictly confirms testing standards.

Our evaporator is made of special high-tech materials, proving its ability to resist corrosion agents. The special rubber gasket ensures the leakage and corrosion resistance of the agent.

Our evaporator has a safety locking device to prevent accidental evaporation of anesthetic gases, providing a very safe anesthesia environment.

Our carburetor does not require regular maintenance, and we can provide a 36 month warranty and lifetime free calibration service

Anaesthesia Evaporator

Technology specification

Concentration Range:

isoflurane 0.2 - 6%

halothane 0.2 - 6%

Sevoflurane 0.2 - 8%

API Type:

Selectatec compatible

Draeger plug-in

Cagemount (ISO 23mm tapers)

Dosing Method:

Pour fil

Easy-fil

Key-fil

Quik fil(sevoflurane only)

Dosage:

Dosage:300 ml

evaporation wicking dose:40 ml

Working Environment:

ambient temperature:+15°C - +35°C

relative humidity:0% - 95%

Traffic range:0.2 - 15 L/min

0.2 - 10 L/min concentration> 5%)

atmospheric pressure range:70 kPa - 106 kPa

storage temperature:-40°C - +65°C

FAQ

Q1.What is the evaporator used in anesthesia?

A1.Modern anesthesia vaporizers have been developed to provide an accurate amount of anesthesia gas while reducing the impact of temperature and pressure on the evaporation process, enabling anesthesiologists to work more safely.

Q2. What about quality assurance?

A2.We provide two-year warranty for medical equipment from the date of delivery.

Q3.The logo and the color can be customized?

A3.Yes, we welcome you to sample custom.

Q4. What about the delivery time?

A4.We have some material in stock, which can make sure to delivery the goods out quickly for small quantity orders. For customized orders, the delivery time is usually within 15 working days after receiving the payment.

Q5.What is payment terms?

A5.T/T, Credit Card, L/C, PayPal.
