Argon Plasma Electrosurgical Unit

Product characters:

Both hand control and foot control outputs are available.

This machine has a power-off protection circuit, which can memorize the output set value of each function in real time.

Full-function automatic power compensation.

The high-frequency generator has a universal endoscope interface, which is used with gastroscope, enteroscope, laparoscope and other endoscopes.

Adopt ENDO CUT alternative output endoscope mode to provide safe and optimal coagulation effect under endoscope.

Output 10 groups of memory modes, support endoscopic treatment, ESD, ERCP, polypectomy and other operations.

With adjustable high-frequency pulse cutter system, the damage to tissues is minimized, and smokeless cutting.

When the air tube or hand piece tube was blocked or twisted, an alarm indication will be sent and the argon output will be cut off.

When the abdominal pressure pipe was blocked or twisted, an alarm indication will be sent and the argon output will be cut off.

Triple foot switch is controlled independently, convenient and fast.

The instrument is equipped with an argon pressure gauge to accurately and real-time display the argon working pressure.

Passed EMC test.

Contact Now E-Mail Telephone

Product Details

Product description

RENDER CM-350 Ar and its special probes offers fundamental advantages over conventional coagulation methods.

The Argon Plasma beam permits non-contact coagulation of tissue, homeostasis of large surface bleeding can be stopped effectively and safely. And penetration depth is lesser than 3mm, no lead to carbonization.

It is applicable to ESD, EMR, ERCP, POEM, polypectomy, polyp burning, gynecology, orthopedics and surgery.

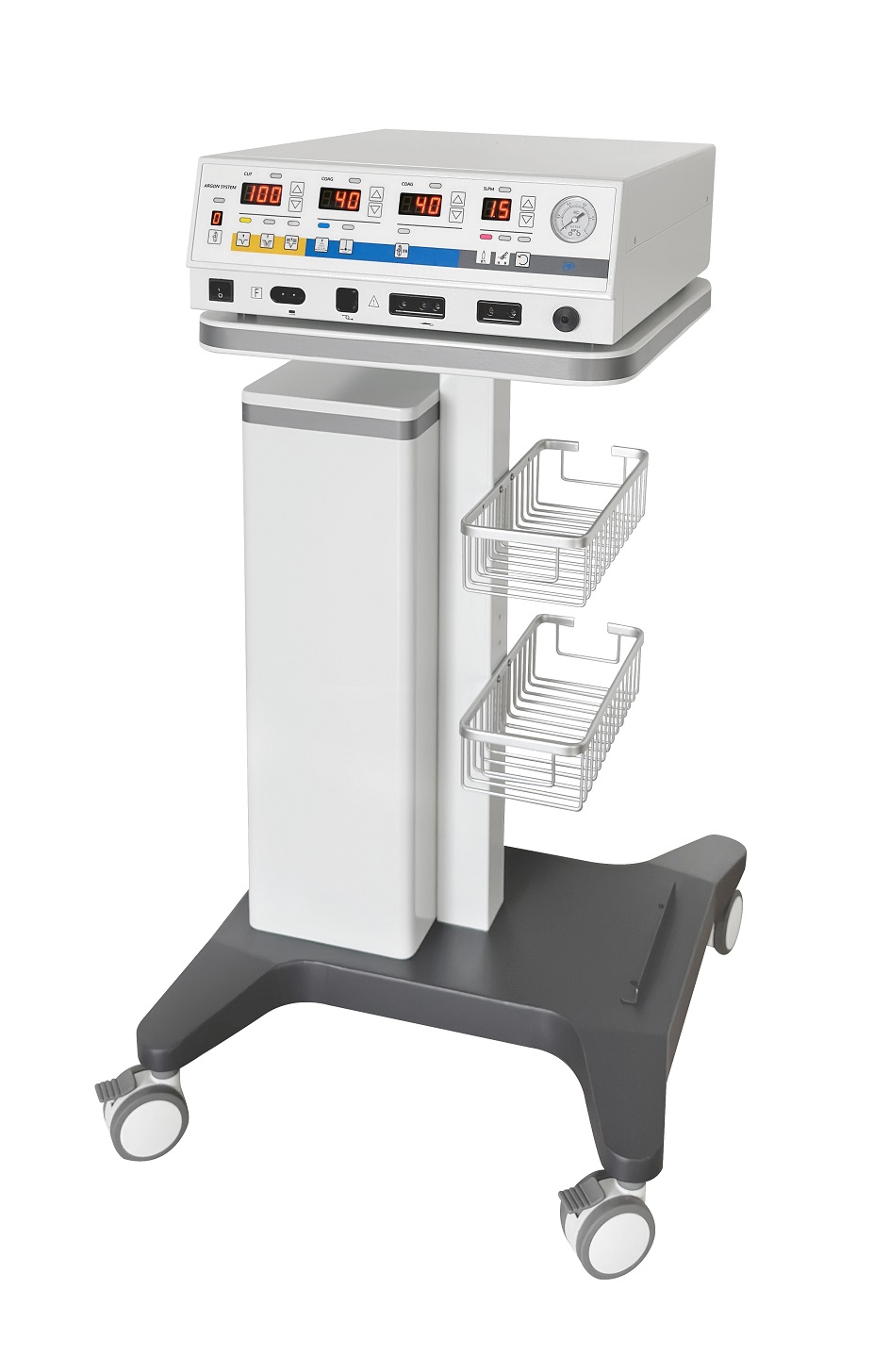

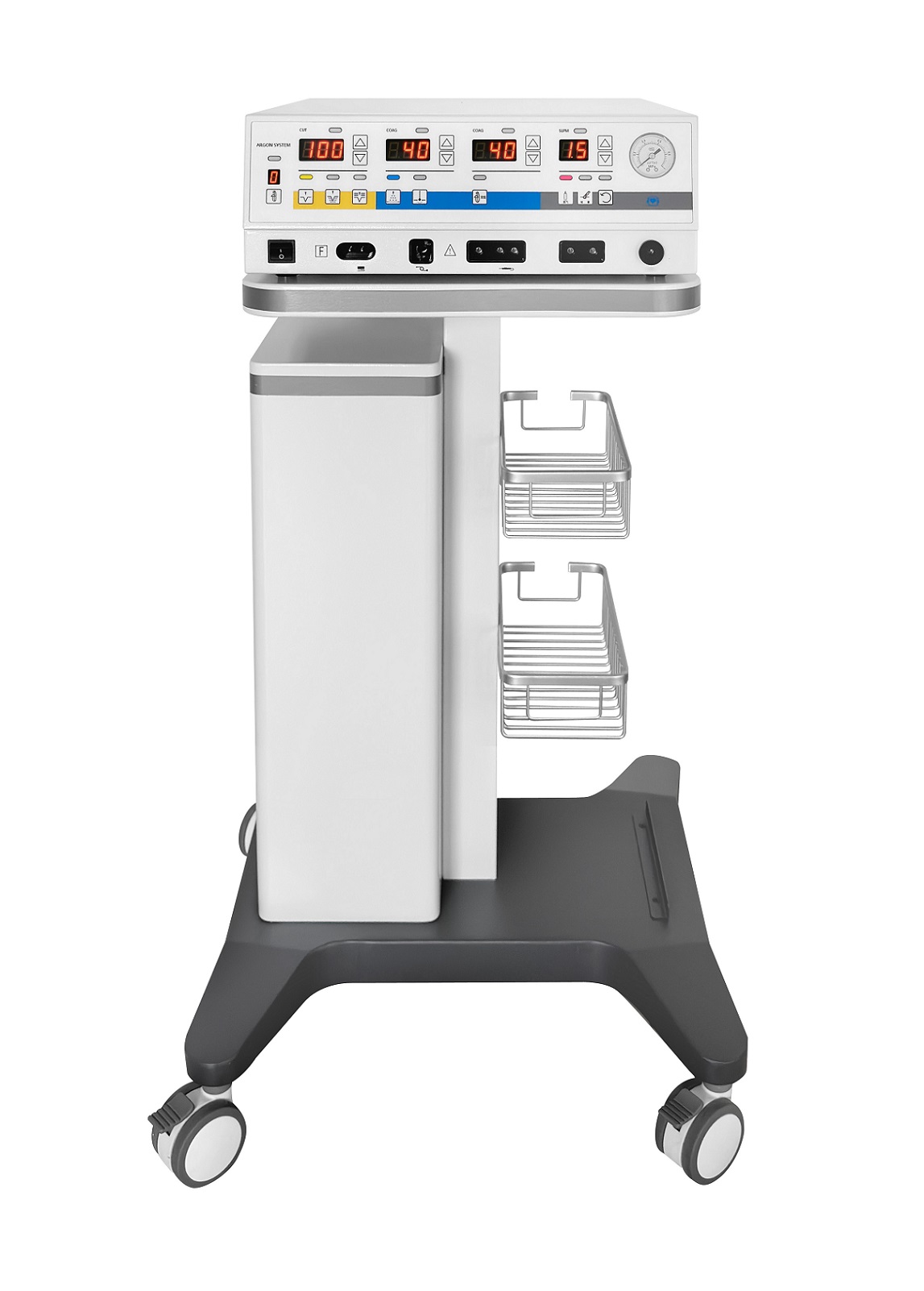

CM-350Ar Electrosurgical Unit

Product chararters

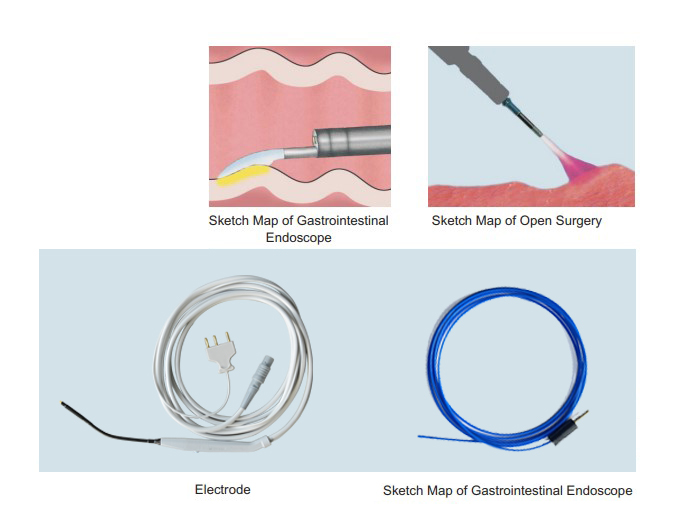

A broad spectrum of applicators in open surgery and for endoscopy.

Non-contact application, with no adhesion between applicator and tissue, and good visibility of the coagulation process.

Uniformly effective, wide-area hemostasis and coagulation.

Limited penetration depth, so that application in areas at risk of perforation is superior to all other coagulation methods.

Function

The 416KHz(+10kHz) high frequency current generated by this argon plasma diathermy machine can performs cut and coagulation for biological tissues.

It integrates cutting, coagulation and AIC argon technology.
It has seven working modes: Cut:Pure cut, Blend 1, Blend 2; Monopolar coagulation: Spray Coagulation, Soft Coagulation, Argon beam coagulation; and Bipolar coagulation.

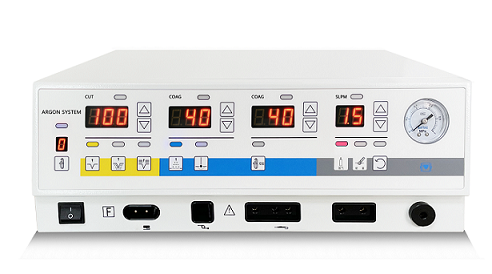

CM-350Ar Argon Plasma Electrosurgical Unit

Technical data

Output Flow Indication	0.1L/min ~ 5L/min (Optional 0.1L/min ~ 10 L/min or Max. 12 L/min)
Step Distance of Flow Control	Varied step distance choices: 0.1L/min (0.1~2.0L/min); 0.5L/min (2.0-5.0L/min);
Security Check	Power on self-test of hardware units and alarm system
Working Gas	99.99% purity medical argon
Argon Supply	Support direct connection to the 40L type argon cylinder from hospital
Cylinder Capacity	4L
Scope Pressure Monitoring	An environment pressure monitoring system, which automatically stops the match and gives an alarm once the pressure is above-threshold in endoscopy
Friendly Interface for Instruments	Each Instruments with its own independent interface to prevent misconnection
Argon Independent output control Function	Only under “spray coagulation” mode and press argon output switch, can it start to work; It prevents the electrode from being burned and the normal tissue from being hurt in case of miss operation of the switch in gastrointestinal endoscopy
ENDO CUT Function	It combines the APC and Electrosurgery, which cut polypus and coagulate bleeding at the same time.
Type	CF
Security Level	I
Input voltage	220v~240v
Frequency of Electric Power	50/60Hz
