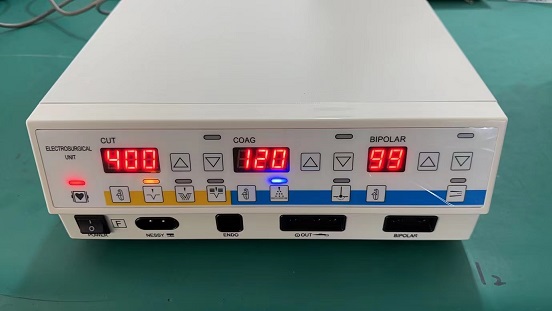

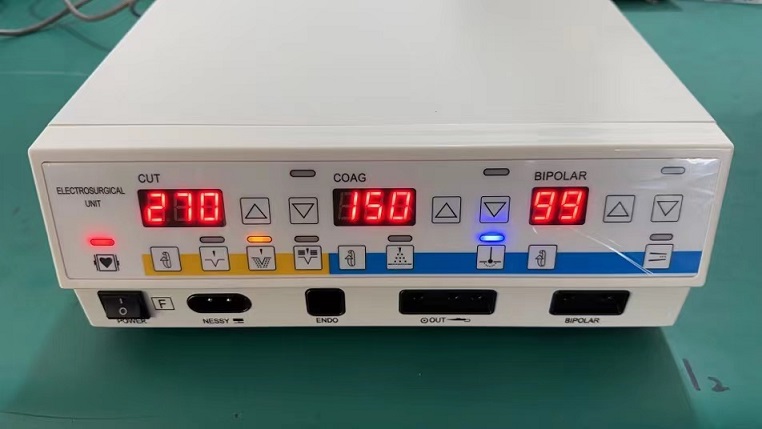

Electrosurgical Cautery Machine

Product Advantages

1. With high performance neutral electrode contact inspection system, system will test and evaluate the

effective contact area between electrode and derma, if the contact area was found low to a danger level, system will automatic cutoutand gives alarm indication.

2.Owns memory function, reserves the last time used data.

3. High definition large LED indication, with audio&visual indication.

4. Main unit has automatic monitoring function and mistake indication function.

5. Automatic compensation function stabilize output power, make depletion to its lowest.

6.Can cut underwater, including organic cut in rich fat area.

Contact Now E-Mail Telephone

Product Details

Product Description

Used for Monopolar and Bipolar surgery in many surgical fields.

Microprocessor control and digital display in LED panel.

System has return electrode monitoring(REM) system.

Support in underwater cut operation.

Full-function automatic power compensation.

System has a universal endoscope interface, which is used with gastroscope, enteroscope, bronchoscope,laparoscope and other endoscopes.

Support bipolar closure and separation to meet the reguirements of surgical bipolar treatment without sticking the negative plate.

Patient circuit bipolar electrode plate contact quality detection system.

Monopolar output can be controlled either by hand or foot, and monopolar/bipolar automatic output.

This machine has a power-off protection circuit, which can memorize the output set value of each functionin real time.

Remote fault diagnosis.

Human voice alarm function.

Passed EMC test.

Technical Parameters

Ambient temp. range	5℃~40 ℃
Relative Humidity Range	≤80;
Atmospheric Pressure Range	86.0~ 106.0kpa;
Power	220V±22V, 50Hz±1;
Operating Freq	330~460kHz;
Rated Power	1100VA±10%;
Type	CF
Power Consumption	≤1100VA (Cut function 400W)
Six output mode	a) Cut: 400W (Load 500Ω) b) Blend 1: 250W (Load 500Ω) c) Blend 2: 200W (Load 500Ω) d) Spray Coag.: 120W (Load 500Ω) e) Contact Coag.: 80W (Load 500Ω) f) Standard bipolar Coag.: 70W (Load 100Ω)

Cut	Pure cut, can make easy operation for any organic, the effect is refine cut, no escharosis on the surface.
Blend 1	The effect is cut with tiny coagulation.
Blend 2	Can use this function together with Endoscope, the effect is offering a better coagulation during cut.
Electro Coag 1	Called strength electrocoagulation, or called surface coagulation, for a deep coagulation layer for organic, small effect area, can use this function together with Endoscope.
Electro Coag 2	Called soft coagulation, or called point coagulation, faster coagulation, large effect area, can use this function together with Endoscope.
Bipolar Coag	Called rapid Bipolar coagulation, to provide coagulation function rapidly at boot, which can prevent organic's adhesion.
