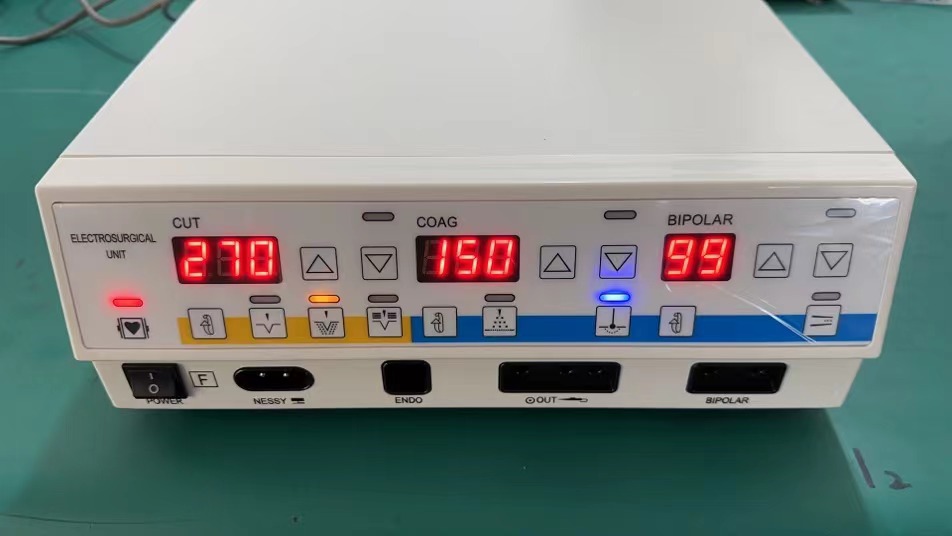

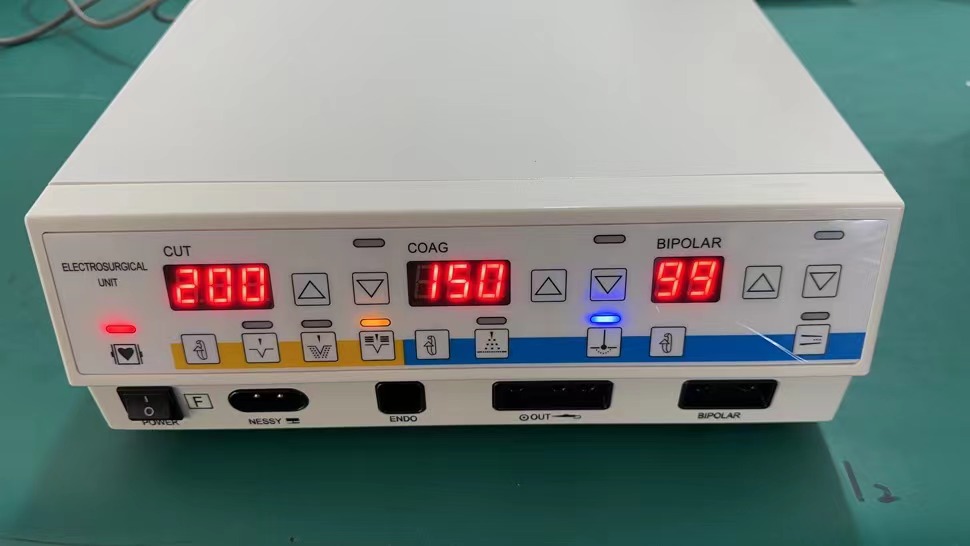

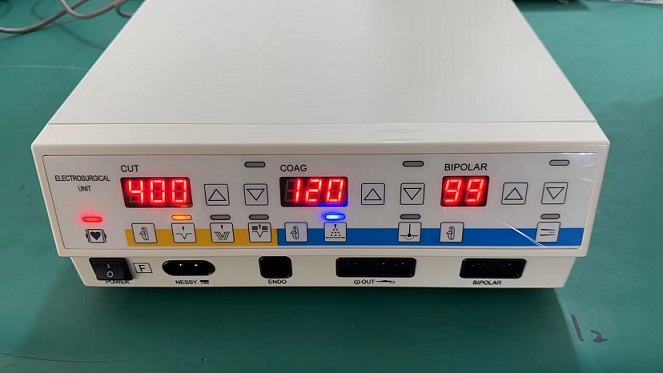

High Frequency Electric Electric Knife

It is suitable for various surgeries on cutting or coagulation, including general surgery, heart, urology, gynecology, anorectal surgery, orthopedics, thoracic surgery, tumor, etc.

It is also used with surgeries of endoscope, hysteroscope, laparoscope, ENT endoscope, etc. The bipolar can be used in the fine surgeries of microsurgery, neurology, ENT and ophthalmology, hand surgery,etc.

Product Details

●Independent output port of endoscope and intelligent conversion key, which can enter endoscopic mode automatically after start-up.

●Microcomputer control system, power-off protection, and memory function of keeping last usage data after restart.
●Automatic adjustment on output power. It can be adjusted automatically according to the change of density of tissue.

Stable output power to keep the minimum wastage.

●Automatic conversion on monopolar and bipolar.

●Automatic monitoring of on-off,automatic detection and error prompt in work.

●The monitoring circuit system on contact quality of neutral electrode can test and evaluate the safety and effectiveness on the contact area between electrode plate and skin. The system can cut off output automatically and give an alarm, in case of finding that contact area is in dangerous level.

It can test and use negative plate of monopolar or bipolar effectively.

●High-definition LCD. Touchable operating panel, which has difrent sound and light indicators during operation.

Operating keys are also available, waterproof operating keys easy to clean and maintain.

●Independent three-way power output. This increases the convenience and security of operation.

●It can be operated and performed well underwater even when dissecting and removal of fat tissue. Fully suspended power output.

There are two independent and isolated application sections to prevent defirillation interference (monopolar and bipolar).

Specific Specification

Technical Parameters

a)Ambient temperature range: 5℃～40℃

b) Relative humidity range: ≤80;

cAtmospheric pressure range: 86.0~106.0kpa;

d) Power supply: 220V+22V, 50Hz+1 or 110V+11V, 60Hz+1;

e) Working frequency: 416kHz

f) Rated power: ≤1100VA (cut-off function 350W)n

g) Type: CF, NonAP, Non-APG type

Output mode:

a) Pure cutting: 1W-350W (maximum 400W, load 500Ω)

b) Mixed 1:1W-250W (load 500Ω)

c) Hybrid 2: 1W-200W (load 500Ω)

d) Hybrid 3: 1W-150W (load 500Ω)

e) ENDO cutting: 99% (load 500Ω)

f) Spray solidification: 1W-80W (load 500Ω)

g) Strong solidification..1W-120W (load 500Ω)

h) Drying electrocoagulation: 1W-120W (load 500Ω)

i) BI-Coag.:1W-70W (load 100Ω)

j) Automatic solidification: 1W-70W (load 100Ω)

k) BL-Cut: 1W-120W (load 100Ω)

l) Sealing: 1W-120W (load 100Ω)
