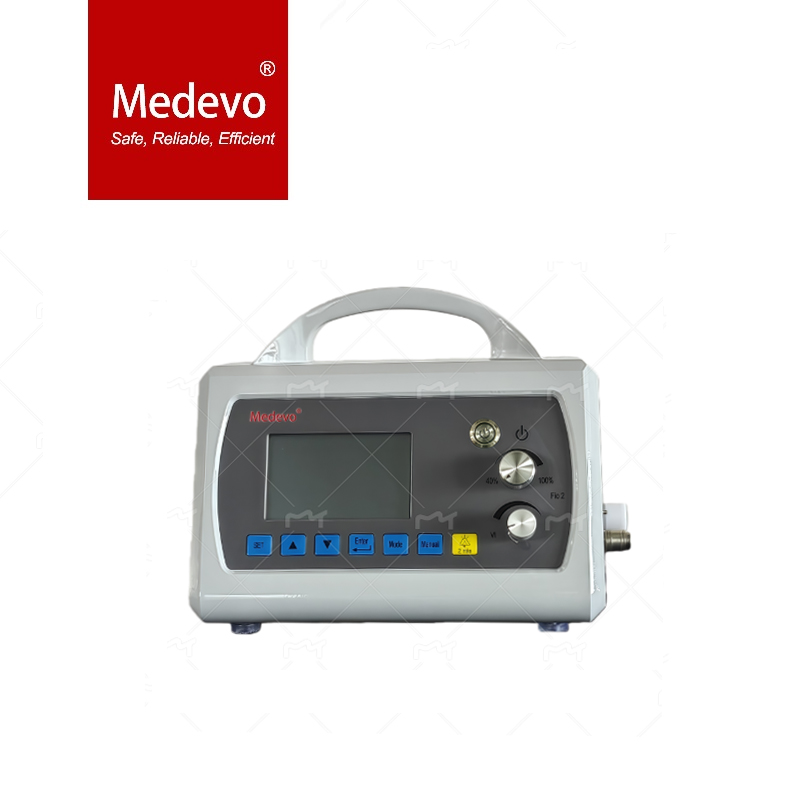

Portable Ventilator

Product description

This transport ventilator is a very important medical equipment that can provide necessary respiratory support to patients in emergency situations. During first aid and transport, even in the event of a power outage, it can help patients maintain normal respiratory function and prevent dangerous situations caused by insufficient oxygen.

Technical Specification

Ventilator main unit:

■5-inch TFT high-resolution LCD screen;

■Scope of application: adults, children (not suitable for newborns)

■Drive mode: pneumatic drive and electronic control

■Tidal volume: 20~2000ml

■Frequency: 3~70bpm

■I:E: 2:1~1:4 (5 classes in total)

■Trigger pressure: -20~0cm H2O or 1~20L/Min

■Alarm mute: ≤120 seconds

■Pressure upper limit: 20~61cmH2O

■Lower limit of pressure: 0~20cm H2O

■Inspiratory pressure: 5~20cm H2O (optional)

■Oxygen concentration: 48%~100% (optional 21%~100%)

■Ventilation modes: manual, A/C SIGH, SIMV, SPONT, CPAP (optional)

■Power supply: AC 220V±10%, 50Hz±1%

Monitoring parameters:

Tidal volume, minute ventilation, total respiratory rate, peak pressure,

Airway pressure wave, trigger indication, AC power indication, DC power indication, charging indication

Alarming parameters:

■Airway press high limitation

■Airway press low limitation

■Apnea alarm

■Low tidal volume

■Low gas source

■Low power

Packaging and Transportation

FAQ

Q1.The logo and the color can be customized?

A1.Yes, we welcome you to sample custom.

Q2.What is your minimum order?

A2.There is no minimum order quantity limit.
