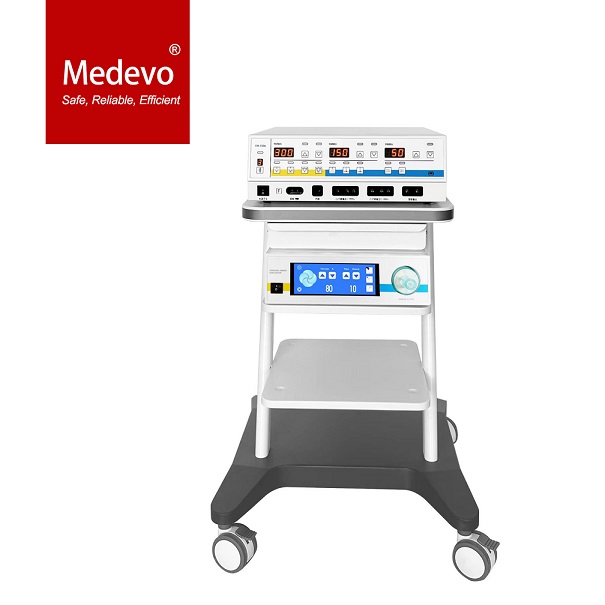

Leep Electrosurgical Unit

Product advantages

(LEEP) Split liquid crystal

1.Full-featured automatic power compensation.

2. The high-frequency generator has a universal endoscopic interface and can be used with endoscopes such as gastroscopy, colonoscopy, bronchoscopy, and laparoscopy.

3. Supports bipolar closure and separation, satisfying surgical bipolar treatment without the need to adhere negative plates.

4. Patient circuit bipolar electrode plate contact quality detection system.

5. The third pedal is independently controlled, with single and bipolar direct pedal output, no need for pedals or manual conversion.

6. Unipolar can have both manual and foot-controlled output, and single- and bipolar automatic output.

7.*This machine has a power-off protection circuit, which can memorize the output setting values of each function in real time.

8. Odor removal rate: 99%@1 year (within one year of equipment use, the odor removal rate reaches 99%)

9. Ultra-quiet design, the maximum ventilation noise is less than 50 decibels.

10. Remote fault diagnosis.

11. Pass EMC test.

Contact Now E-Mail Telephone

Product Details

Product description

Type:

The output of this machine is fully suspended, with two independent and isolated CF-type anti-defibrillation application parts (unipolar and bipolar),

non-AP, APG type ordinary equipment, powered by 220V±10% network power supply.

Function:

The 416KHz (±10%) high-frequency current generated by this machine can perform surgical operations such as cutting and coagulation of biological tissues.

It has the functions of unipolar pure cutting: pure cutting, mixed cutting 1, mixed cutting 2; unipolar coagulation: spray coagulation

There are six working modes: , soft condensation and standard bipolar.

Leep Electrosurgical Unit

Technical Parameter

Rated output power:

a) Pure cutting: 1W ~ 350W (load 500Ω); precise cutting without coke, 100% cutting.

b) Mixed cutting 1: 1W ~ 250W (load 500Ω); superficial charcoal precise cutting 80% cutting, 20% coagulation.

c) Mixed cutting 2: 1W ~ 200W (load 500Ω); 60% cutting, 40% coagulation.

d) Spray coagulation: 1W～80W (load 500Ω); large area coagulation

e) Soft condensation: 1W~120W (load 500Ω); precise superficial point condensation

f) Standard bipolar: 1W ~ 70W (load 100Ω);

normal operation:

a) Ambient temperature range: 5℃～40℃;

b) Relative humidity range: ≤95%;

c) Atmospheric pressure range: 86.0~106.0kPa;

d) Power supply: 220V±22V, 50～60Hz±1Hz;

e) Working frequency: 416kHz;

Machine power consumption: ≤1100VA. (Cutting function 350W);

Transportation and storage

a) Ambient temperature range: -40℃～55℃;

b) Relative humidity range: ≤95%;

c) Atmospheric pressure range: 500kPa～1060kPa.

Smoking machine parameters

Power supply: 110～220VAC, 50Hz, 2A Maximum vacuum degree: ≥10kPa Input power: 300W

Maximum air volume: 100 l/min Stop delay time: 0-60 adjustable

Noise: ≤50dB (A) Particle removal: 99.99% @0.2um

It has three start functions: synchronous, foot pedal, and manual. The air volume output delay stop is adjustable.
