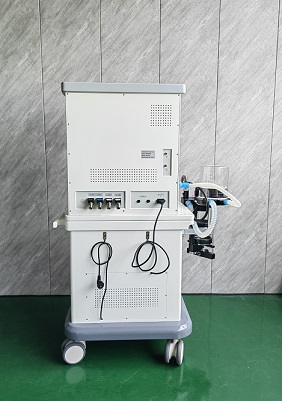

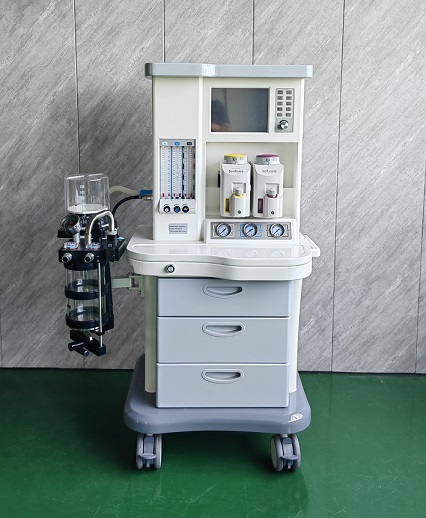

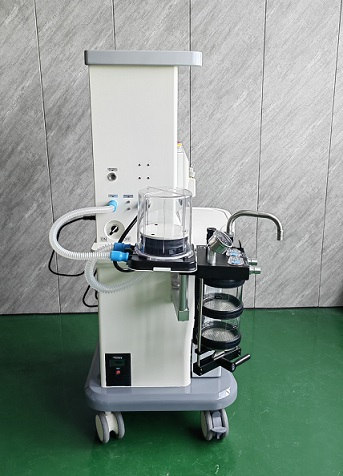

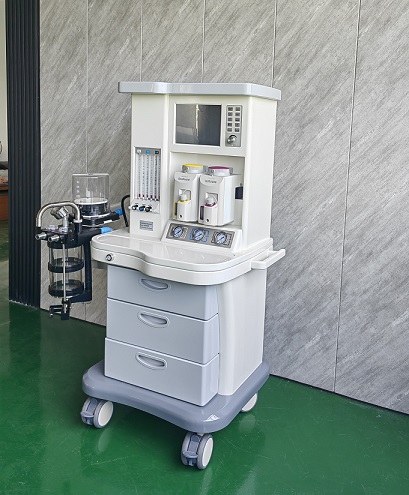

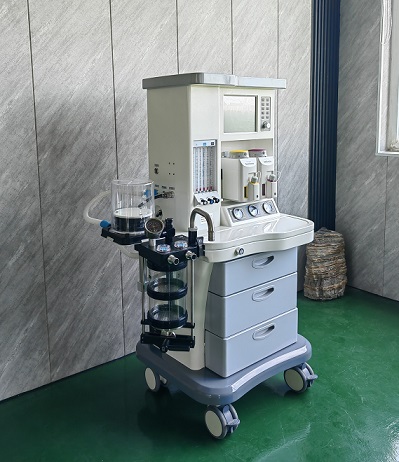

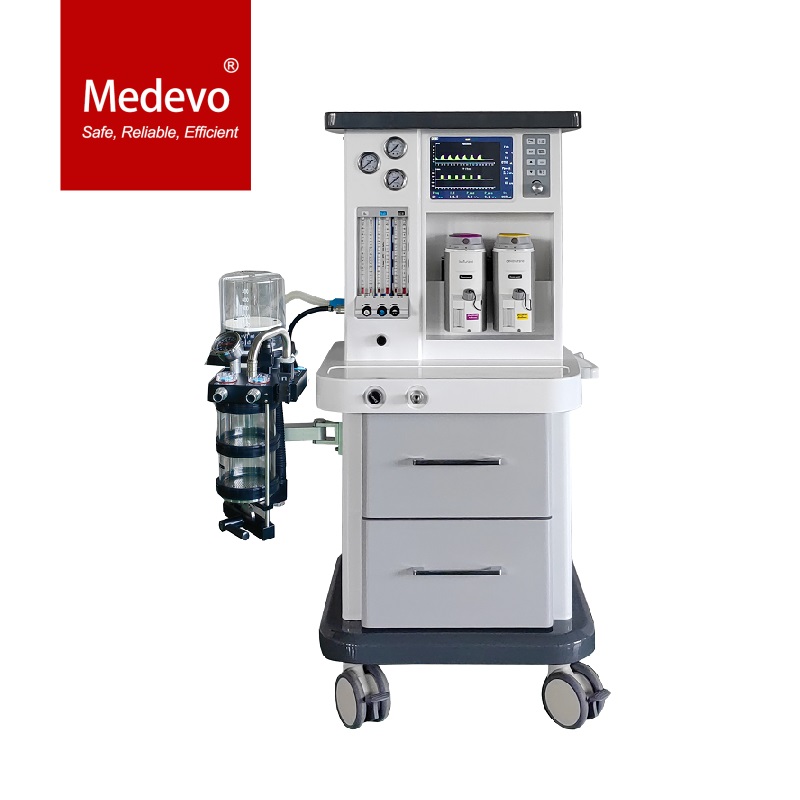

High End Anesthesia Machine

Technical Specification

Anaesthesia main unit:

High resolution 10.4" color TFT LCD screen

Dual-end pressure flow sensor,The unit can monitoring Tidal Volume,Respiratory frequency, airway pressure, pressure-time wave, flow-time wave (two-way),High Pressure limitation, Low Pressure limitation, Apnea,Oxygen concentration under both two operating mode (Auto、Manual)

Respiration loop function

Close,semi-close,semi-open

Application: Adult, Pediatric

Low gas alarming: it gives alarming more than 7 seconds.

High pressure Limitation: Whenever airway pressure exceed the pre-set High pressure,ventilator offers protection automatically, which supplies safety to patient.

Low pressure protection: Once O2 pressure less than 0.1MPa, N2O gas supply wasstopped automatically.

Power failure alarming, power extendable function

O2 flush:25~75L/min

Gas Pressure:O2:0.3~0.5MPa

N2O:0.3~0.5MPa

AIR:0.3~0.5MPa

Power:220V+10%，50Hz±1%; Backup USP Battery.

Optional: Yoke system for backup O2, N2O cylinders

Flow meter:

O2, N2O, AlR-six tubes (0.05~1 L/min,1 ~10L/min)

O2/N2O inter-lock system, to keep O2 concentration no less than 25%

Features

Structure made of ABS;

Large pressure gauges for easy reading;

CO2 absorber with easy change over system

Optional: Yoke system for backup 1xO2,1xN2O A-Type cylinder;

Anaesthesia Ventilator:

Adult, Pediatric bellows 1 set each;

Pneumatic driven electric control

Monitor Parameters: Tidal volume, Respiratory frequency, l:E rate, M.V., FIO2, Apnea.Peak airway pressure, airway pressure waves(P-T,F-T) etc.

Working mode: Manual, Auto (IPPV, SIMV, A/C, SIGH, PCV, PSV, Demo.)

Tidal volume: 0, 50~1500 mL

Respiratory frequency: 4~99 bpm

1:E: 1:0.5 ~ 1:8 (adjustable)

Synchronizer trigger Pressure: - 2 ~ 0 KPa

High pressure limitation: 2 ~ 6 KPa

Low pressure limitation: 0~2 KPa

Safety Features

Gases interlocking system with hypoxy guard;

Oxygen exhaust alarm;

Blow-off valve in top circuit.

Respiratory Circuit

Consolidated compact CO2 absorber (autoclavable).

Vaporizer

High end precise vaporizer (Halothane, lsoflurane, Sevoflurane)

Halothane/lsoflurane adjustable range: 0.5 ~ 5% VOL

Sevoflurane adjustable range: 0.5 ~8% VOL

Automatic compensation function -flow, pressure, temperature

Self-lock function & inter-lock function

Volume: >280 ml
