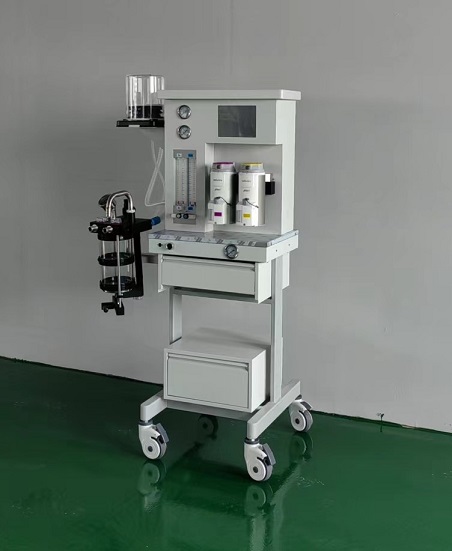

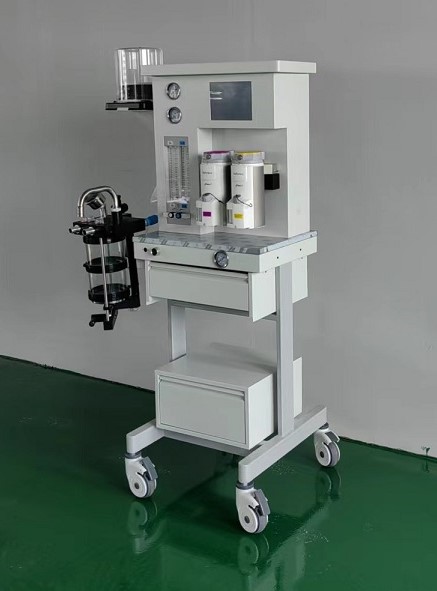

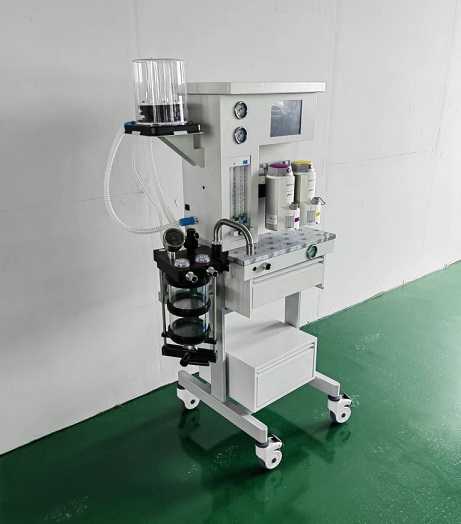

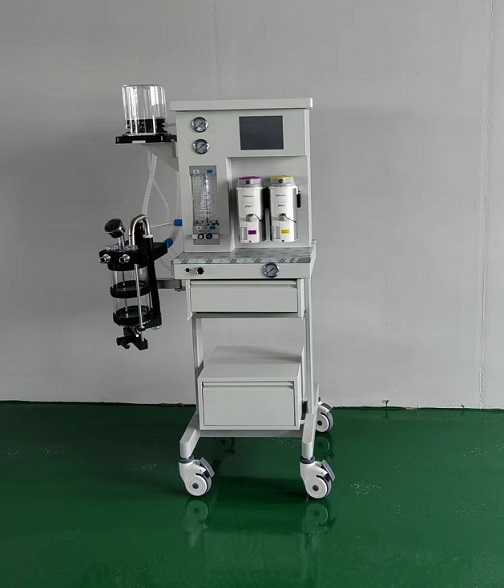

Anaesthesia Machine-Double Big Vaporizer

Product description

Contains Output interface for Anesthesia information management system.

Complete with backup battery for working more than 30 minutes.

Technical Specification

Anaesthesia main unit:

■High resolution 8'' color TFT LCD screen

■Dual-end pressure flow sensor,The unit can monitoring Tidal volume,Respiratory frequency,

Airway pressure,Presssure-time wave,High pressure limitation,Low pressure Limitation,Apnea,

Oxygen concentration under both operating mode(Auto,Manual)

■Respiration loop function

■Close,semi-close,semi-open system

■Application:Adult,Pediatric

■Low gas alarming:Low O2 gas pressure,it will give alarming more than 7 seconds

■High pressure limitation:Whenever airway pressure exceed the pre-set high pressure,

ventilator offers protection automatically, to assure airway pressure can not increase

anymore which supplies safety to patient.

■Low pressure protection:Once O2 pressure less than 0.1MPa, N2O gas supply was stopped

automatically.

■Power failure alarming,power extendable function

■O2 flush:25~75L/min

■Gas Pressure:O2:0.3~0.5MPa;N2O:0.3~0.5MPa

■Power:220V±10%, 50Hz±1%;backup UPS battery

■Optional touch screen anaesthesia ventilator

Flow meter:

■O2/N2O or O2/Air(Optional) - four tubes (0.05~1L/min,1~10L/min)

■O2/N2O inter-lock system, to keep O2 concentration no less than 25%

Anaesthesia ventilator:

■Adult bellow 1 set

■Pneumatic driven electric control

■Monitor parameters:Tidal volume,Respiratory frequency,I:E rate,Peak airway pressure,airway

pressure wave(P-T),Optional Minute volume;

■Working mode:manual,auto(IPPV,SIGH,SIMV/F/2,SIPPV,Optional PEEP,EtCO2)

■Tidal volume:0.50~1500ml

Respiratory frequency:4-60bpm

■I:E: 1:1~1:4(adjustable)

■Synchronizer trigger pressure:-3~0KPa

■High pressure limitation:2~6KPa

■Low pressure limitation:0.6~2KPa

Respiratory Circuit:

■Consolidated compact CO2 absorber(autoclavable) with own patent

ZF-3000 Vaporizer:

■High end precise vaporizer(Enflurane,Halothane,Isoflurane,Sevoflurane)

■Adjustable range:0.5~5% VOL

■Automatic compensation function-flow,pressure,temperature

■Self-lock function

■Volume:>280ml (Optional electronic vaporizer)

Packaging And Transportation

FAQ

Q1. Why do we find that some prices are higher than those from other suppliers, but they are all the same from the pictures or models?

A1.Since there are very few patented products in China, copycat products spread very quickly in the market.

Therefore, copycat products with cheap materials and poor quality control are relatively cheap.

Q2. What is the delivery time?

A2.Since our products are produced according to specific orders, the delivery time is 15 days after order confirmation.

If it is a small order or sample order, please be sure to confirm with us whether we have it in stock so that it can be shipped as soon as possible.
