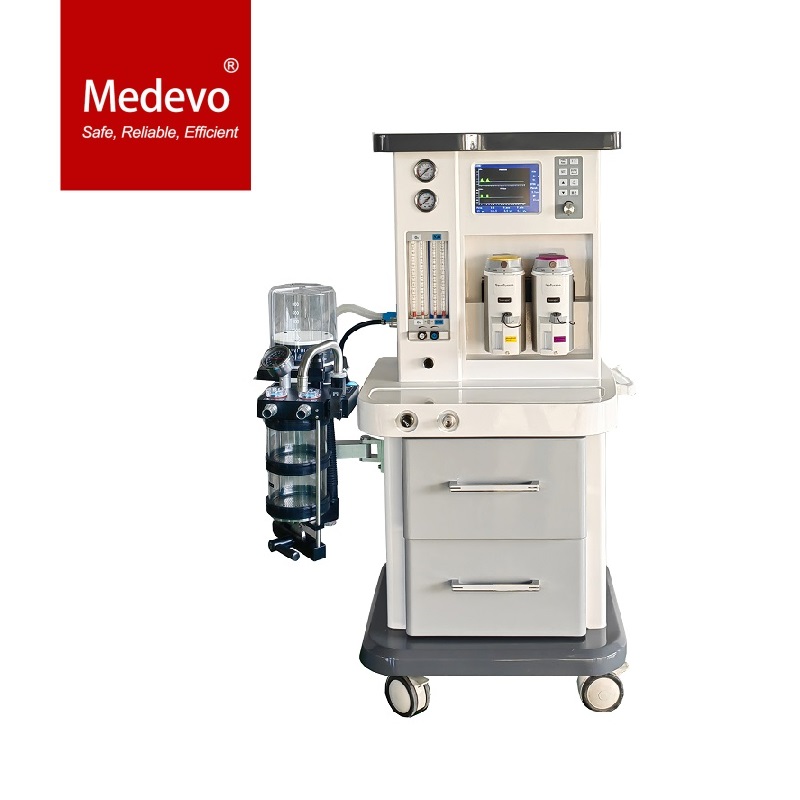

ICU Anaesthesia Machine

Product Description

Anesthesia machines have shown good performance in intensive care units (ICU), operating rooms, anesthesia departments, and other departments. Our expertise in anesthesia delivery and ventilation is based on a rich 15 year history of developing anesthesia solutions to meet your needs. Based on excellent performance of high security, high precision, high stability, and accurate monitoring.

Technical Specification

Anaesthesia Main Unit

Hiah resolution 8" color TFT LCD screen

Dual-end pressure flow sensor,The unit can monitor Tidal Volume,Respiratory frequency, airway pressure, pressure-time wave, flow-time wave (two-way),High Pressure limitation, Low Pressure limitation, Apnea,Oxygen concentration under both two operating mode (Auto、 Manual)

Respiration loop functionm

Close, semi-close, semi-open

Application: Adult, Pediatric

Low gas alarming: it gives alarming more than 7 seconds.

High pressure Limitation: Whenever airway pressure exceed the pre-set High pressure,ventilator offers protection automatically, which supplies safety to patient.

Low pressure protection: Once O2 pressure less than 0.1MPa, N2O gas supply wasstopped automatically.

Power failure alarming, power extendable function

O2 flush: 25~75L/min

Gas Pressure: O2: 0.3~0.5MPa

N2O: 0.3~0.5MPa

Power:220V±10%,50Hz±1%; Backup USP Battery

Optional: Yoke system for backup O2, N2O cylinders

Flow meter

O2, N2O -Four tubes (0.05 ~1 L/min, 1 ~ 10L/min)

O2/N2O inter-lock system, to keep O2 concentration no less than 25%

Anaesthesia Ventilator

aesthesia Ventilat Adult, Pediatric bellows 1 set each;

Pneumatic driven electric control

Monitor Parameters: Tidal volume, Respiratory frequency, l:E rate, M.V.. FlO2, ApneaPeak airway pressure, airway pressure waves(P-T.F-T) etc.

Working mode: Manual, Auto (lPPV, SIGH, SIMV, SIPPV, Demo, optional PCV, PSV

Tidal volume: 0, 50~ 1500 mL

Respiratory frequency: 4 ~ 99 bpm

I:E:1:0.5~ 1:8 (adjustable)

Synchronizer trigger Pressure: - 2 ~ 0 KPa

High pressure limitation: 2 ~ 6 KPa

low pressure limitation: 0~ 2KPa

Respiratory Circuit

Consolidated compact CO2 absorber (autoclavable)

Vaporizer

High end precise vaporizer (Halothane, lsoflurane, Sevoflurane)

Halothane/lsoflurane adiustable range: 0.5 ~ 5% VOL

Sevoflurane adjustable range: 0.5 ~ 8% VOL

Automatic compensation function - fow, pressure, temperature

Self-lock function & inter-lock function

Volume: >280 ml

Respiratory

FAQ

Q1. Why do we find that some prices are higher than those from other suppliers, but they are all the same from the pictures or models?

A1.Since there are very few patented products in China, copycat products spread very quickly in the market.

Therefore, copycat products with cheap materials and poor quality control are relatively cheap.

Q2. What is the delivery time?

A2.Since our products are produced according to specific orders, the delivery time is 15 days after order confirmation.

If it is a small order or sample order, please be sure to confirm with us whether we have it in stock so that it can be shipped as soon as possible.
