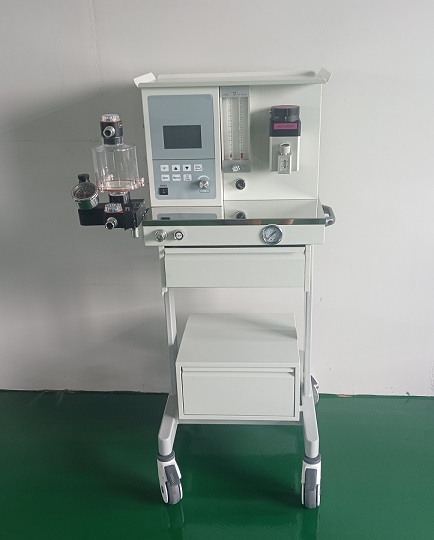

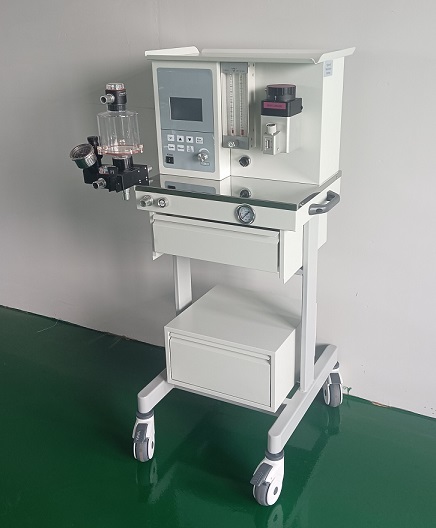

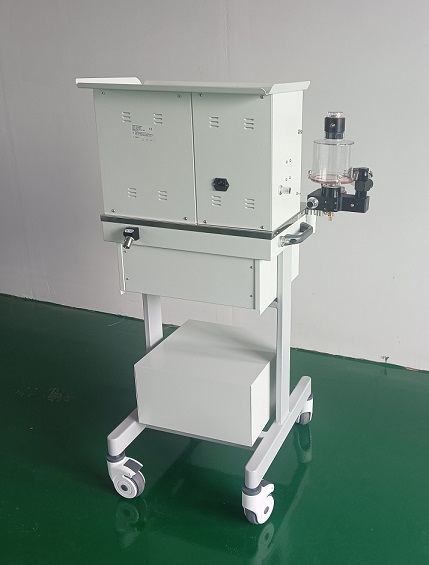

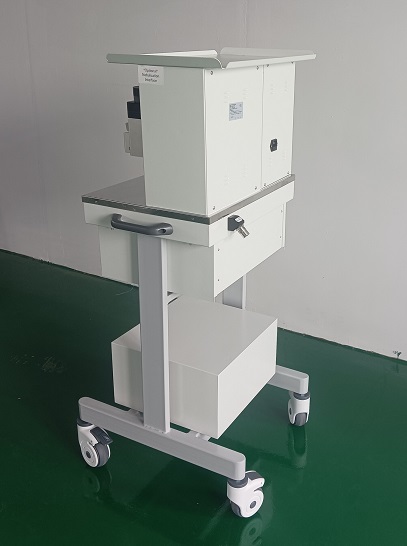

Anesthesia Machine-single small vaporizer

Product description

Compact structure, beautiful and exquisite, saving operating room space

Stainless steel table top, never rust, reduce maintenance costs

Technology specification

Anaesthesia main unit:

■High luminance digital LED screen

■Close,semi-close,semi-open system

■Application:Adult,Pediatric

■Low gas alarming:Low O2 gas pressure,it will give alarming more than 7 seconds

■High pressure limitation:Whenever airway pressure exceed the pre-set high pressure,

ventilator offers protection automatically, to assure airway pressure can not increase

anymore which supplies safety to patient.

■Power failure alarming,power extendable function

■O2 flush:25~75L/min

■Gas Pressure:O2:0.3~0.5MPa

■Power:220V±10%, 50Hz±1%

Flow meter:

■O2 - dual tube(0.05~1L/min,1.1~10L/min)

Anaesthesia ventilator:

■Adult bellow 1 set,Optional 1 set Pediatric bellow

■Pneumatic driven electric control

■Working mode:manual,auto(IPPV)

■Tidal volume:0.50~1500ml

■Respiratory frequency:4~60bpm

■I:E: 1:1~1:4(adjustable)

■Synchronizer trigger pressure:-3~0KPa

■High pressure limitation:2~6KPa

■Low pressure limitation:0.6~2KPa

■Monitor parameters:Tidal volume,Respiratory frequency,I:E rate,Peak airway pressure

Respiratory Circuit:

■Exterior CO2 absorber,simply disassembly,convenient to replacing"soda lime"

ZF-1000 Vaporizer:

■One precise vaporizer(Enflurane,Halothane,Isoflurane,Sevoflurane)

■Adjustable range:0.5~5% VOL

■Automatic compensation function-flow,pressure,temperature

■Self-lock function

■Volume:180ml

■Optional:two precise ZF-1000 vaporizer or one high precise ZF-2000 vaporizer

Packaging and Transportation

FAQ

Q1: Does your company accept OEM?

A1: Yes, we can accept customers' designs.

Q2: How do we get a quotation?

A2: You can tell me the products you are looking for, including your quantity, detailed requirements, so I will send you a quotation via Whatsapp, email.

Q3. How do we ensure quality?

A3.There are always pre-production samples before mass production;

Final inspection is always done before shipment.
